CW-500ZD Fully Automatic Bottom Seal Soft Loop Handle Bag Making Machine

CW-500ZD fully automatic bottom seal soft loop handle bag making machine from bag-making to soft loop handle sealing fully automatic, instead of semi-automatic soft loop handle sealing machine. In additon, the speed of this machine is what the semi-automatic one can’t exceed.

Soft Loop Handle Bag Making Machine Feature

1. V-type sealing for both sides of bag ,which makes the bag look good and solid
2. Soft handle turning driving is based on the design of mechanic principal

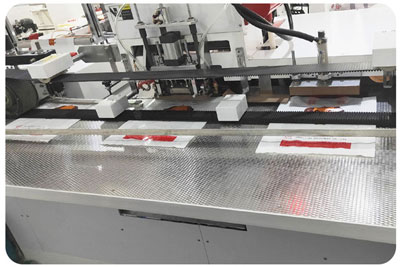

3. The auto conveyor table will deliver the finished bags while its counted
4. It has EPC automatic control for unwinding

Optional Equipment

1.Tube film double side gusseting unit
2.Punching unit for handle.

Technical Parameter

Details Images

Unwinder	V type sealing device (K sealing device)
1. Jumbo roll automatic lifting device with air cylinder 2. Plug feeding shaft and air shaft 3. Automatic tension control 4.Single photocell control EPC	1. Pneumatic control up-down V type sealer 2. Multi-position distance adjust 3. High temperature cloth is rewinded fast.
Photocell sensor device	soft Loop handle sealing applicator
1. Vertical, horizontal moving independence 2. Zero malfunction photocell use Datalogic from Italy 3. Rotary-photocell reflected roller 4. Three-side location by photocell, servo motor, PLC	1. Double layer unwinding bracket 2. Special ramp pulling over-turn soft loop handle 3. Semi-motor drives the soft loop handle device forward or backward.
