CW-800HCB Automatic Isothermal Bag Making Machine
全自动硬手把保温袋制袋机
1. Unwinding with automatic tension control.
2. Big diameter roll of dischange rack design,can reduce the downtime.
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001
Automatic Bag Making Machine For Isothermal Bag
CW-800HCB Automatic bag making machine with new design, with rigid hand sealing device, fully automatic production design, simple operation. The auto rigid hand sealing device can save human cost.
Main Features
1. Unwinding with automatic tension control.
2. Big diameter roll of dischange rack design,can reduce the downtime.
3. Folding device wih special design,to offer the tension of low friction.
4. Fully automatic handle transport device, advanced design, the size and type of rigid handle can be changed.
5. Three layer cooler bag making machine design of heavy duty sealing knife, can make the three layers film firmly, with good effect of insulation and cold.
6. Adopt photoelectric from Sick of Germany. Zero fault.
Optional Equipment
1. Punching unit for handle.
Technical Parameter
| Model | CW-800HCB |
| Length of bag making | 250-650mm |
| Width of bag making | 250-600mm |
| Production speed | cooler bag 70pcs/mn |
| Rigid handle bag | 50pcs/min |
| Size of rigid handle | 200-450mm |
| bottom gusset | 40-65mm |
| Total power | 21.3kw |
| Machine weight | 3900kg |
| Machine dimension | 11000x5200x2130mm |
| Air compressor | 7.5HP |
Details Images
|
|
 |
 |
|

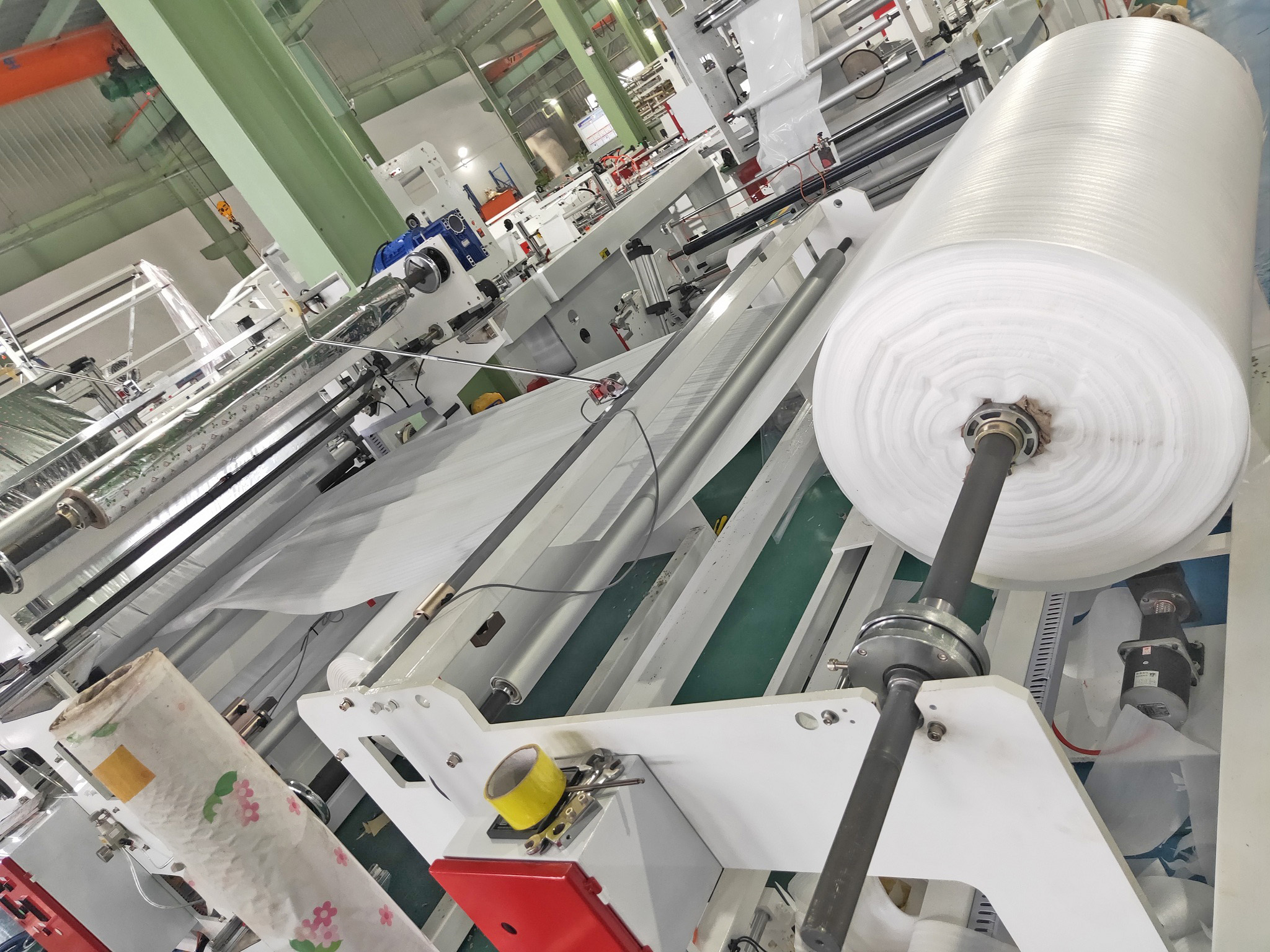

Double unwind |

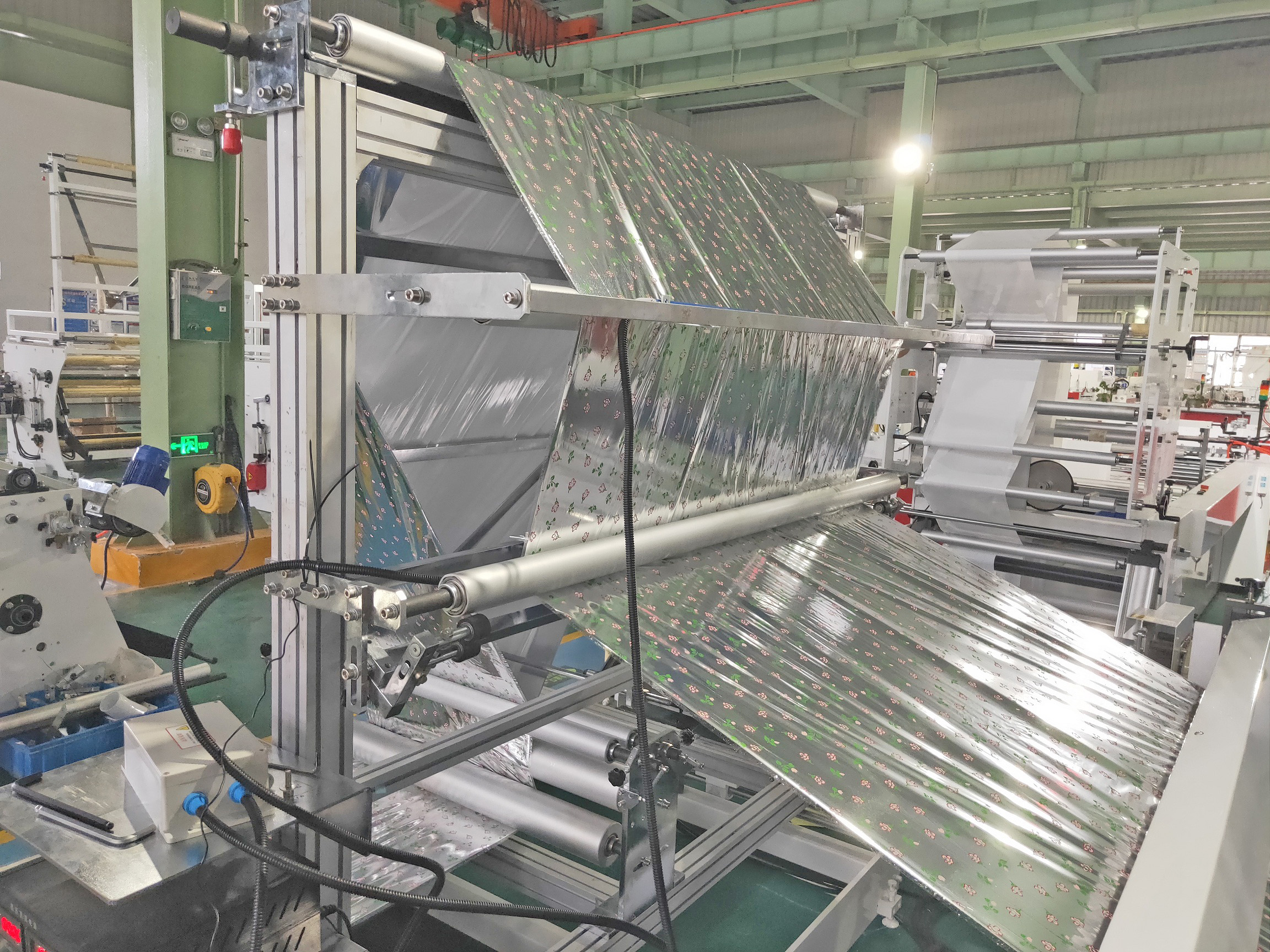

Triangle folding part |

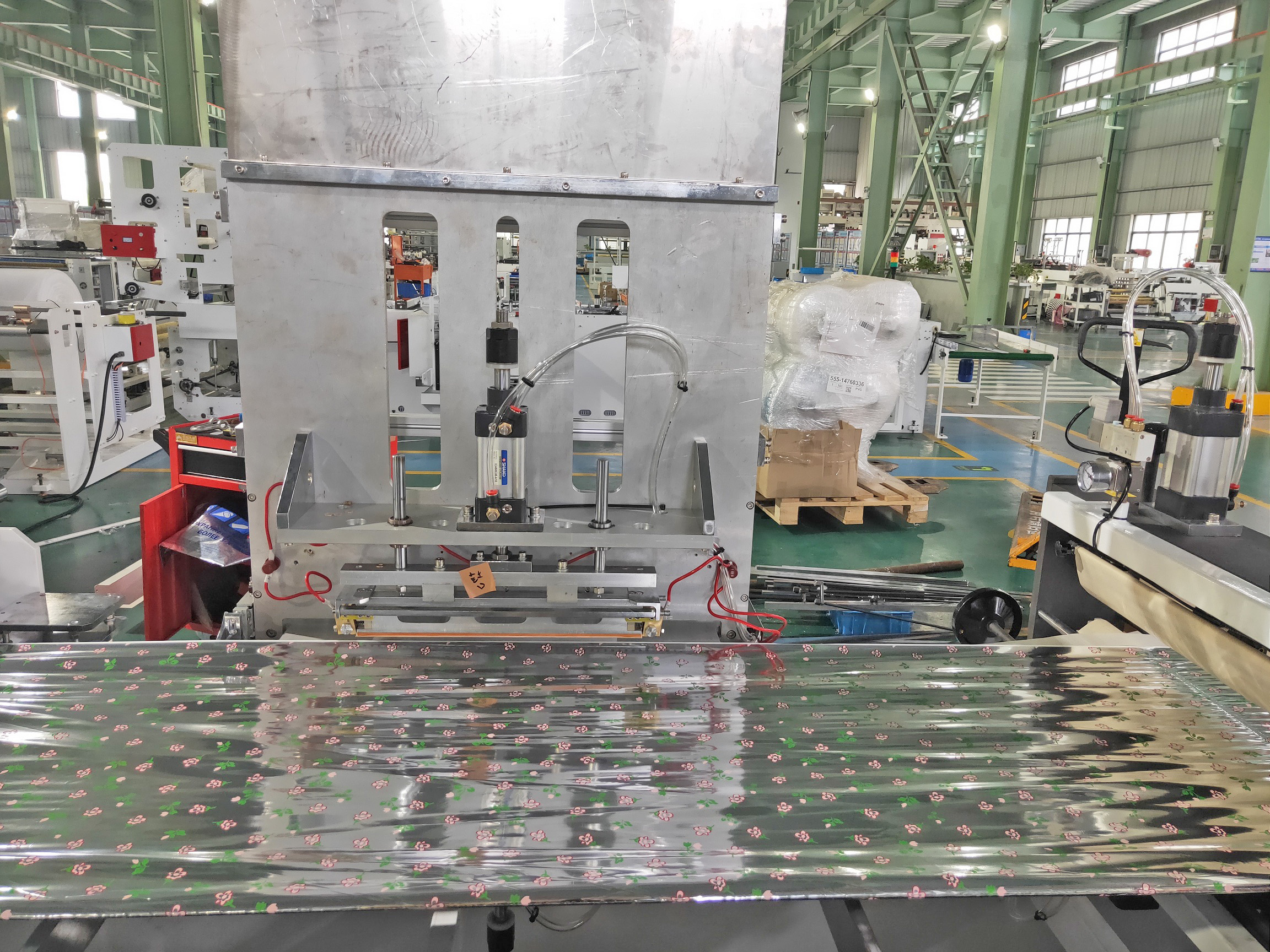

Hot air sealing |
 |
|
|
Unwind of rigid handle |

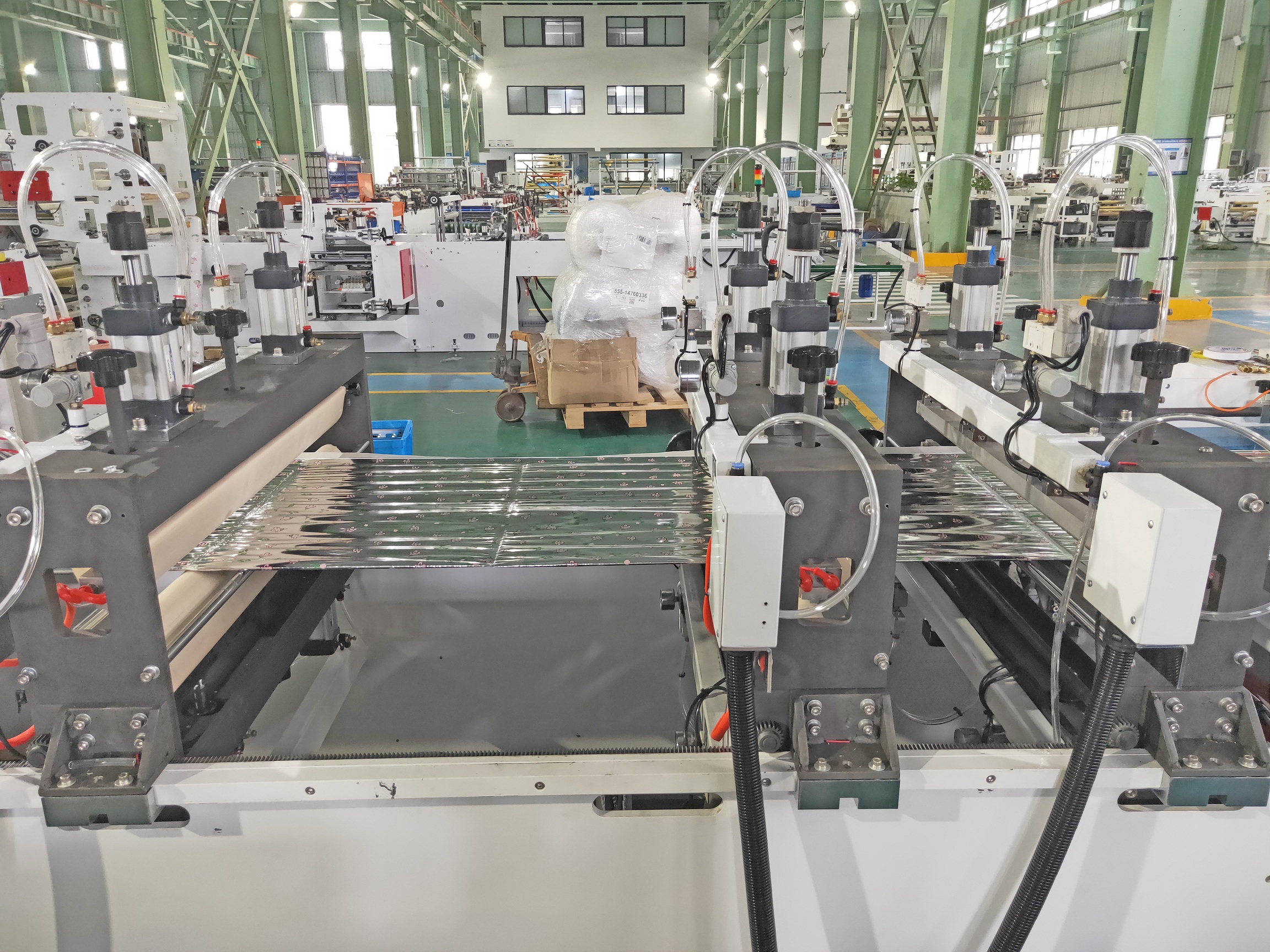

Rigid handle attaching part |
|
|
|

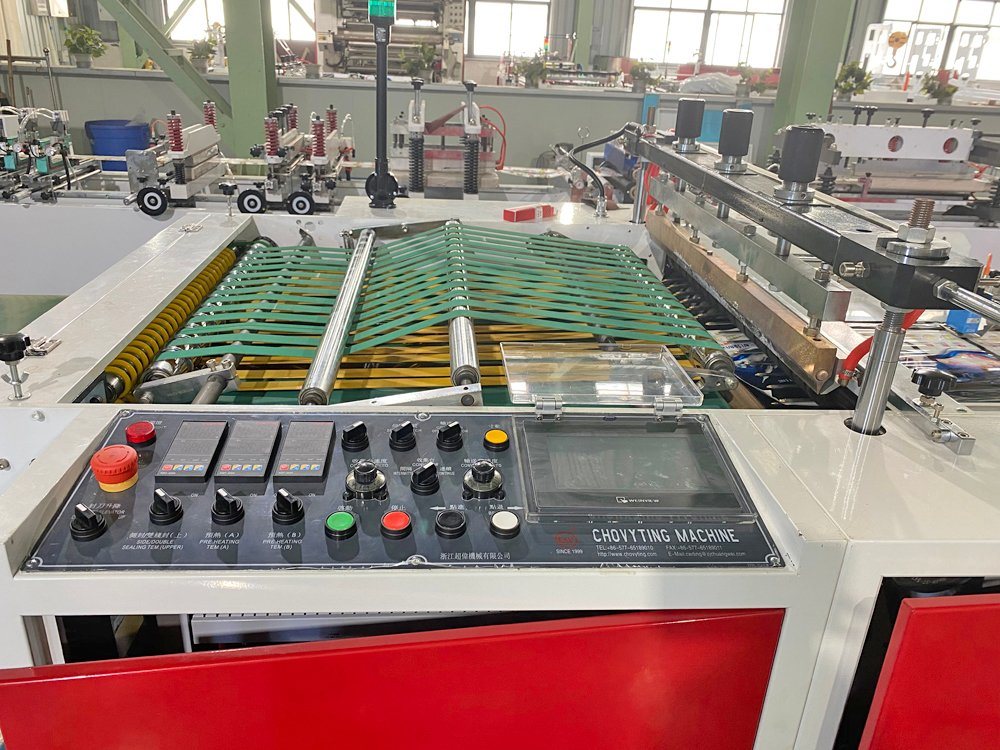

Side sealing bar&touch screen from Taiwan |
Auto collection table |
