CW-800SP Fully Automatic Patch Handle Bag Making Machine
全自动派奇袋制袋机
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001
Fully Automatic Patch Handle Bag Making Machine
Brief introduction:
This machine has 2 functions ( patch handle bag,die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.
Including:
1. side sealing knife
2. Folding unit
3.Automatic collect table
OPtional equipment：
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device
|
Model
|
CW-800SP
|
|
Length of bag-making
|
250-750mm
|
|
Width of bag-making
|
250-800mm
|
|
Top-folding edge
|
50-75mm
|
|
Bottom gusset
|
20-70mm
|
|
Speed of bag-making
|
|
|
Soft loop handle bag
|
|
|
Patch handle bag
|
80pcs/min
|
|
Poly draw handle bag
|
|
|
Die cut handle bag
|
80pcs/min
|
|
Total power
|
10KW
|
|
Machine weight
|
3200kg
|
|
Machine dimension（LxWxH]
|
8x
3.1x
1.87m
|
Details Images
|
|
|

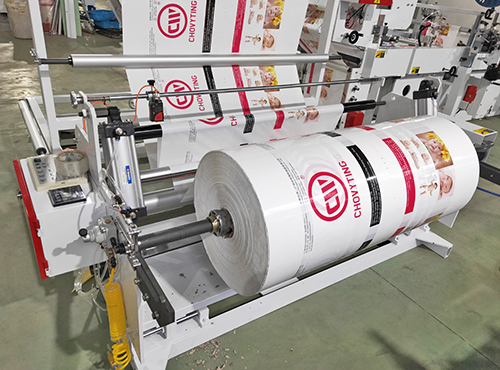

Common unwindingCommon unwinding |
Top-folding continuoTop-folding continuously sealing deviceusly sealing device |
1. Unwinding adopt common loading , max diameter of raw rolling materialisφ600mm2. Adopt magnetic powder tension control. Manual adjust the tension.3. Unwinding shaft is heavy-chainplug axle |
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing
|
|
|
|

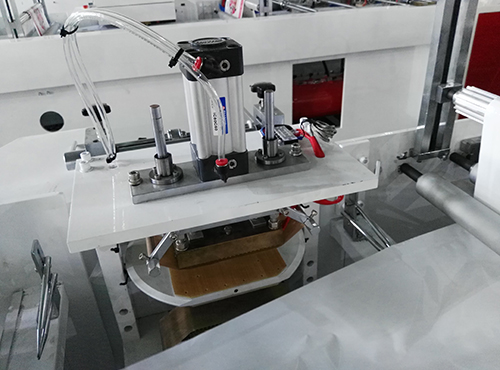

Patch handle bag device |
|
1. Turnabout cylinder control patch2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate
|
|
|
|
|

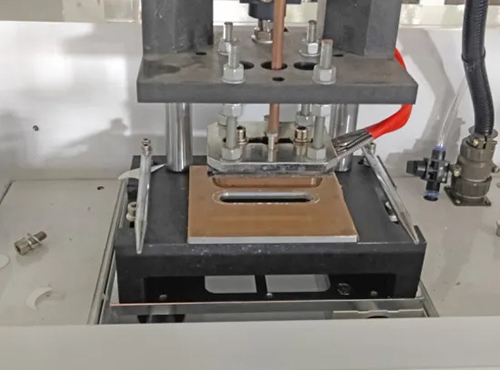

Heat sealing handle punch |
|
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate
|
|
|
|
|

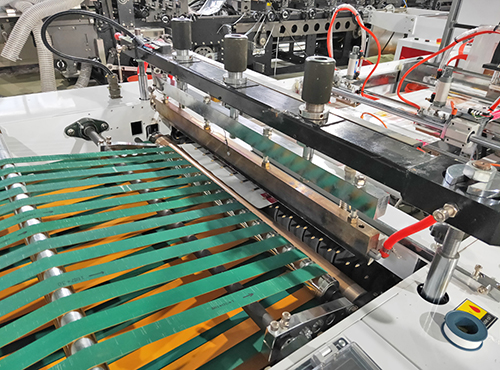

Side sealing parts |

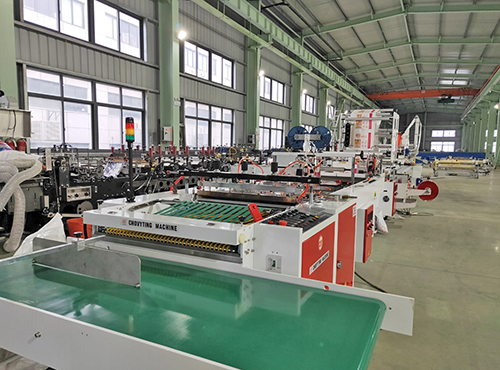

Convey collect device |
1.Side sealing knife with water cycle cooling system.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Side sealing knife with concealed style heating tube, temperature steady
|
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3.Collect table is driven by Micro-motor reducing servo
|
