CW-800SBD+ZP Automatic Ziplock Bag Making Machine

Automatic Ziplock Bag Making Machine

This is CW-800SBD+ZP automatic ziplock bag making machine to seal plastic zipper reel to Plastic film, in order to form the zipper bags with or without slider head. Special design of PE zipper bag making machine, fully automatic produce,the operation with more simplify design.

Main Features

1. unwinding with air cylinder loading.
2. low friction top fold and bottom gusset device.
3. easy operation zipper heat sealing device.
4. heavy duty side seling knife,easy clean .
5. with multiterm automatic warming,automatic stop device.
6. new design liquid crystal screen, with 5 kinds of language choose.

Optional Equipment

1. handle puncher design.
2. double lines sealing knife and bottom sealing knife.
3. round bottom chicken device.
4. European style diaper device.

Technical Parameter

Details Images

Automatic hydraulic loading unwinder	Zipper sealing part
1.The max.diameter of the unwinder is 600mm, the unwinder shaft adopt plug-shaft 2.Unwinder with EPC device 3.Manual magnetic power tension control	Special for sealing zipper with high temperature.

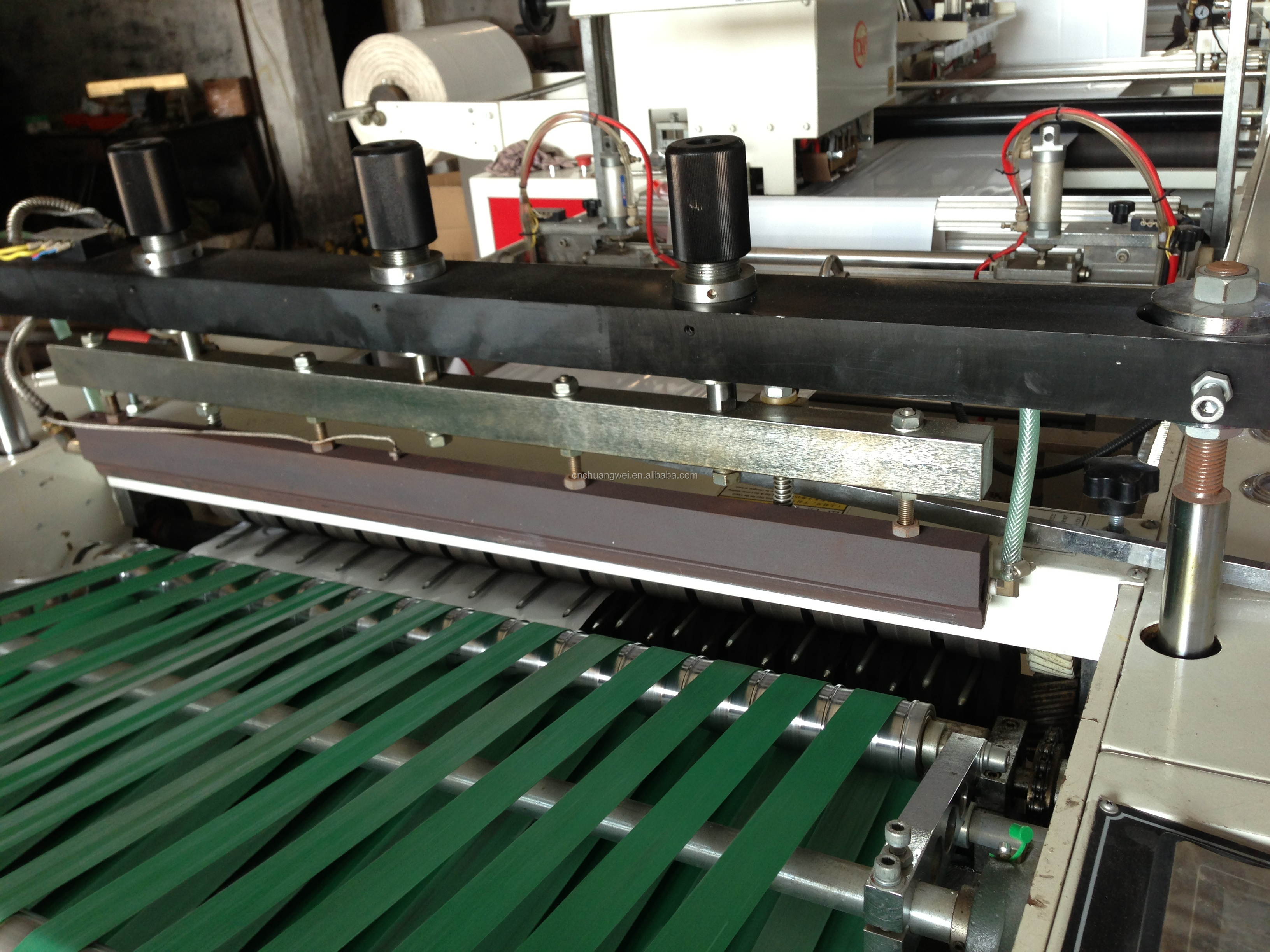

Slider head feeding applicator & ultrasonic crusher	Heavy duty side sealing knife Sealing and cutting part
1.The max.diameter of the unwinder is 600mm, the unwinder shaft adopt plug-shaft 2.Unwinder with EPC device 3.Manual magnetic power tension control	1.Side sealing knife principal axis transmissionbelt cylinder lifting and down. 2.With water cycle cooling system. 3.With concealed style heating tube, temperature steady

CW-800SBD+ZP side sealing bag making machine integrated with efficient functions such as pneumatic feeding, zipper heat sealing, and heavy-duty side sealing knives. The operation is intelligent and convenient.

The zipper side seal bag making machine is equipped with a multilingual LCD screen and a multi-stage temperature control system, and supports various expansion devices such as punching handles and double line sealing knives to meet diverse bag making needs.
