CW-800SDP Fully Automatic High Speed Handle Bag Making Machine
全自动高速手提袋制袋机
2. Double sealing knife device
3. Bottom sealing knife device
4. Triangle folding device
Technical Parameter：
|
Model |
CW-800ZD |
CW-800LP |
CW-800SP |
CW-800CSD |
CW-800SDP |
|
Length of bag-making（Height of bag） |
250-750mm |
250-750mm |
250-750mm |
250-700mm |
250-700mm |
|
Width of bag-making |
250-600mm |
250-600mm |
250-600mm |
250-600mm |
250-600mm |
|
Top-folding edge |
50-75mm |
50-75mm |
50-75mm |
50-75mm |
50-75mm |
|
Bottom gusset |
20-70mm |
20-70mm |
20-70mm |
20-60mm |
20-60mm |
|
Speed of bag-making |
|
|
|
|
|
|
Soft loop handle bag |
60pcs/min |
60pcs/min |
|
120pcs/min |
100pcs/min |
|
Patch handle bag |
60pcs/min |
|
60pcs/min |
|
100pcs/min |
|
Poly draw handle bag |
65pcs/min |
|
|
|
|
|
Die cut handle bag |
80pcs/min |
80pcs/min |
80pcs/min |
140pcs/min |
120pcs/min |
|
Total power |
13KW |
10KW |
10KW |
10KW |
18KW |
|
Machine weight |
3500kg |
3200kg |
3200kg |
3000kg |
3600kg |
|
Machine dimension [L x W x H] |
8.2 x 3.1x1.87m |
6.2x 3.1 x 1.87m |
6 x 3.1 x 1.87m |
7x 2.2 x 1.95m |
10.2 x2.2x1.95m |
|
Air compressor [not included] |
7HP |
8HP |
8HP |
8HP |
75HP |
■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.
Fully automatic multifunction plastic soft loop handle shopping bag making machine
Brief Introduction:
Specially design new machine, it is only used for making soft loop handle bag, patch handle bag and die cut handle bag.
Features:
1 The design of soft loop handle bag and patch handle bag in the same side,fast exchange the type of bag
2 Soft loop handle device with 3 pcs servo motor drive
3 The rotary device of patch handle drive dy servo motor
4 Top folding continuous sealing design,the sealing length not be limited
5 Newly design of bag stack and speed down conveyor system
Optional devices:
1 Double lines sealing knife device
2 Bottom sealing knife device
Note:
This model is high speed model, up to 100pcs/min. We also have one normal speed model CW-800Zd model, 60pcs/min.
|
|
|
Common unwinding |
Top-folding continuously sealing device |
|

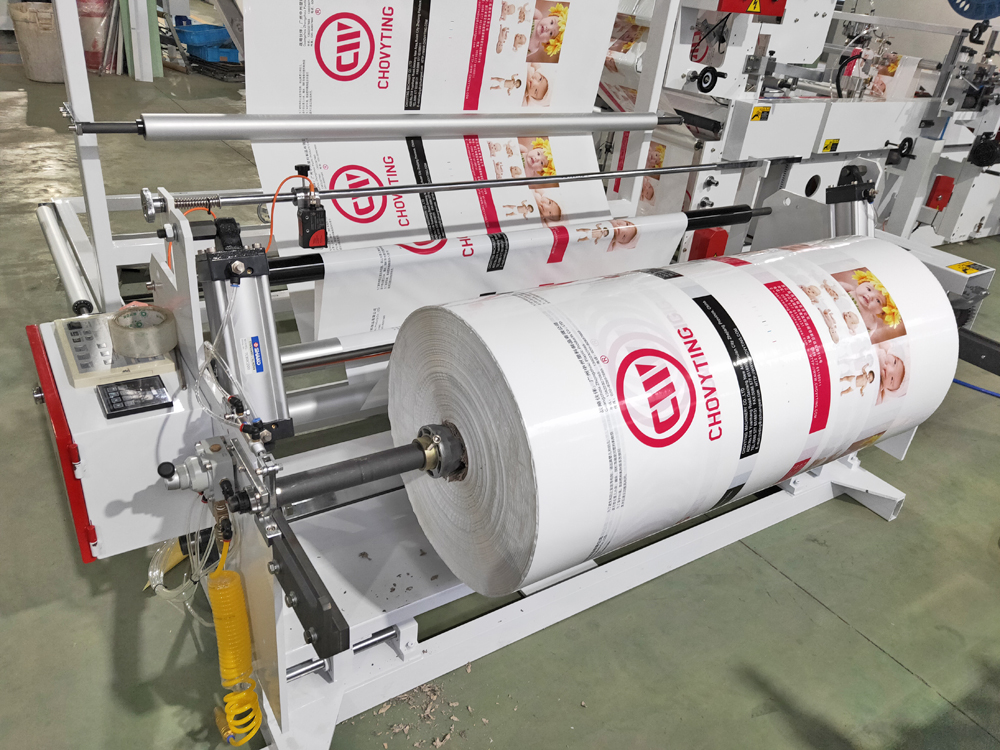

1 Unwinding adopt common loading, max diameter of raw rolling material is φ600mm
2 Adopt magnetic powder tension control. Manual adjust the tension
3 Unwinding shaft is heavy-chainplug axle
|
1 Top-folding continuously sealing, the width size of bag not be limited
2 Inside heating wire sealing, which is suitable for full colors of bag
3 Adopt import heat wire, steady warming, hard sealing
|
|
|
|

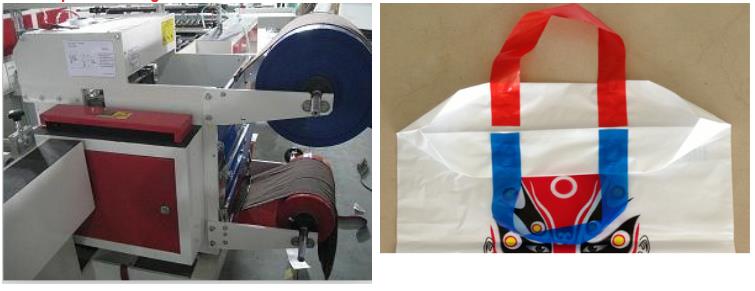

Soft loop handle bag device |
Patch handle bag device |
|
1 Hydraulic skew angle feeding soft loop
2 90 degree turnabout gear rotary soft loop
3 Special oblique drag style rotary soft loop
4 Micro-motor driver soft loop handle go forward and back off
5 Centralize style air control system
|
1 Turn about cylinder control patch
2 With flying knife cutting fast
3 Special pattern sealing mould
4 Micro-motor driver patch go forward and back off
5 Base mould of patch device adopt whole steel plate
|
|
|
|

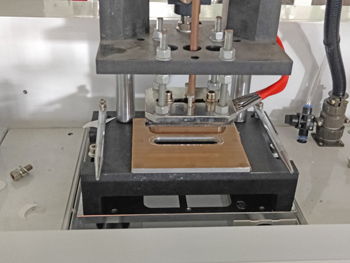

Heat sealing handle punch |
|
|
1 High hardness gear steel smooth pillar
2 Air outside waster film blower hopper
3 The whole style rotary 180 degree
4 High hardness alloy aluminium puncher base plate
|
|
|
|
|
Convey collect device |

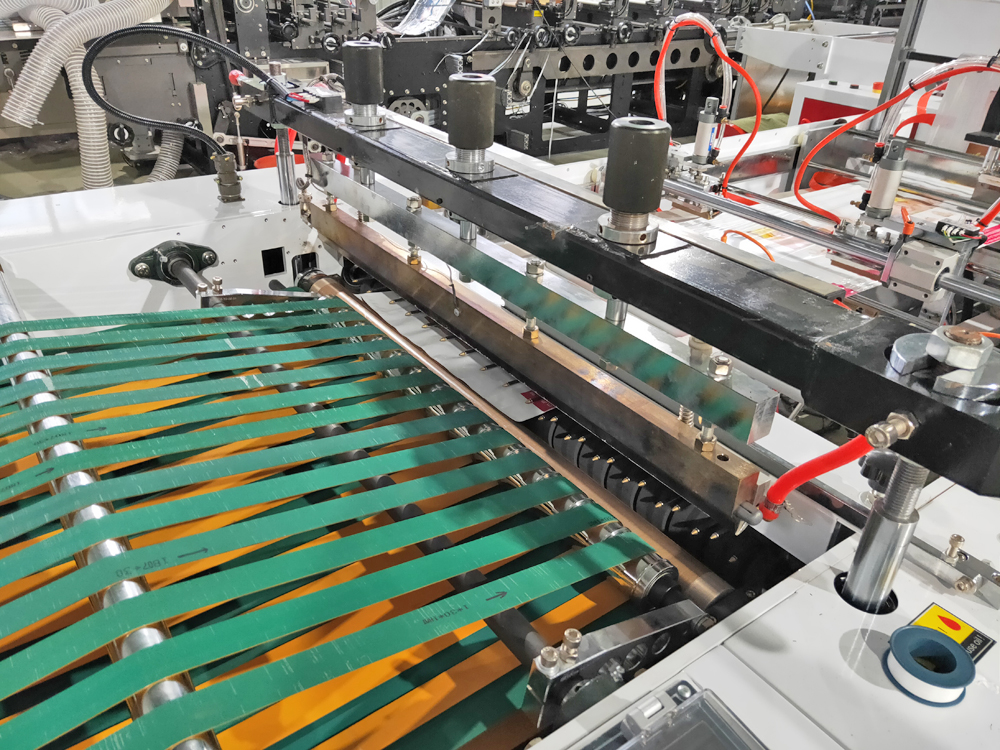

Side sealing parts |
|
1 Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2 When the bag reach to a certainty quantity, collect table will move automatically, and continue producing
3 Collect table is driven by Micro-motor reducing servo
|
1 Side sealing knife with water cycle cooling system
2 Side sealing knife adopt best of breed material, high temperature heating ametabolic
3 Side sealing knife with concealed style heating tube, temperature steady
|
